IBEX Robotics | Modular Televisual inspection vehicle

All-Terrain

Modular Mobility

Buoyant

Amphibious Frame

2.0KG Payload

Sealed Internal Bay

8hrs Runtime

Dual Li-Ion Core

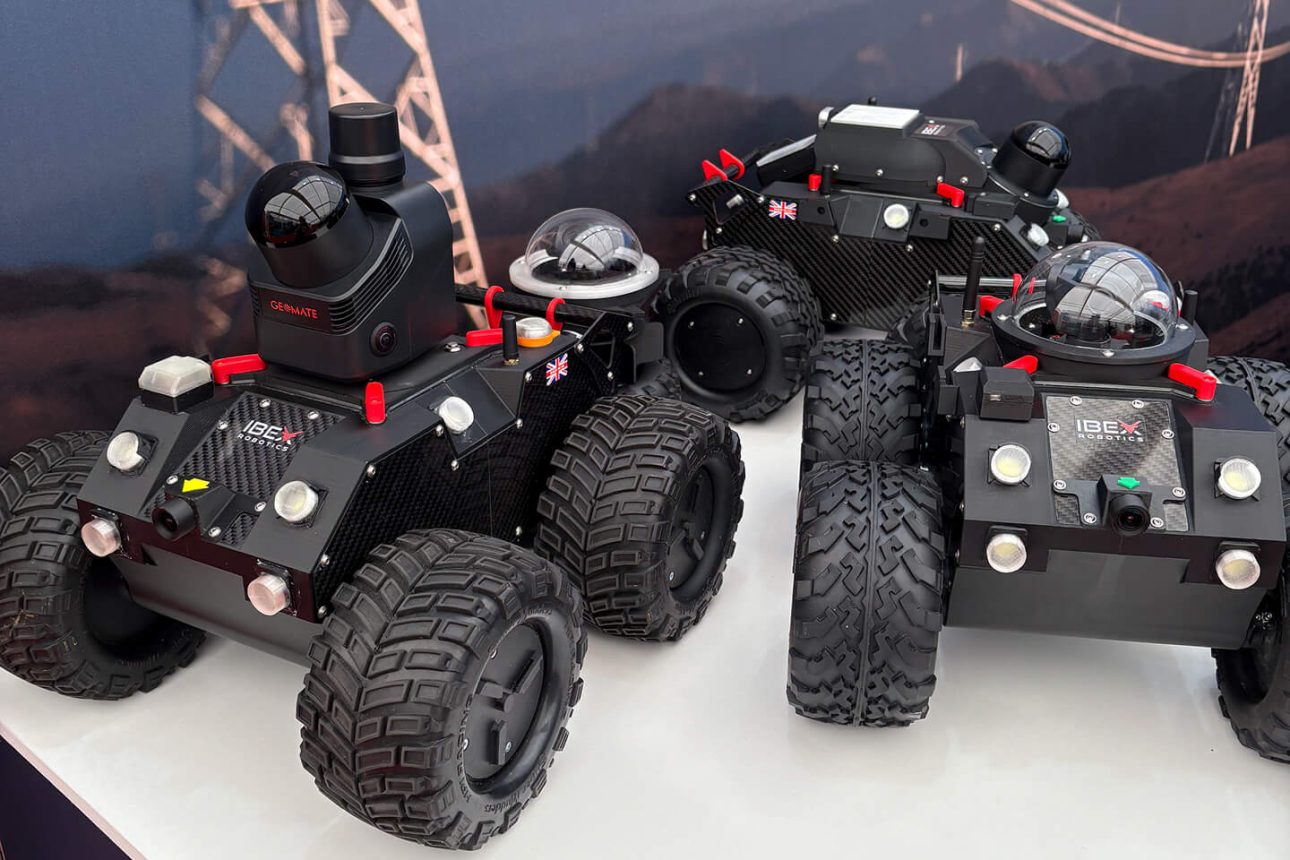

Rugged by Nature. Modular by Design.

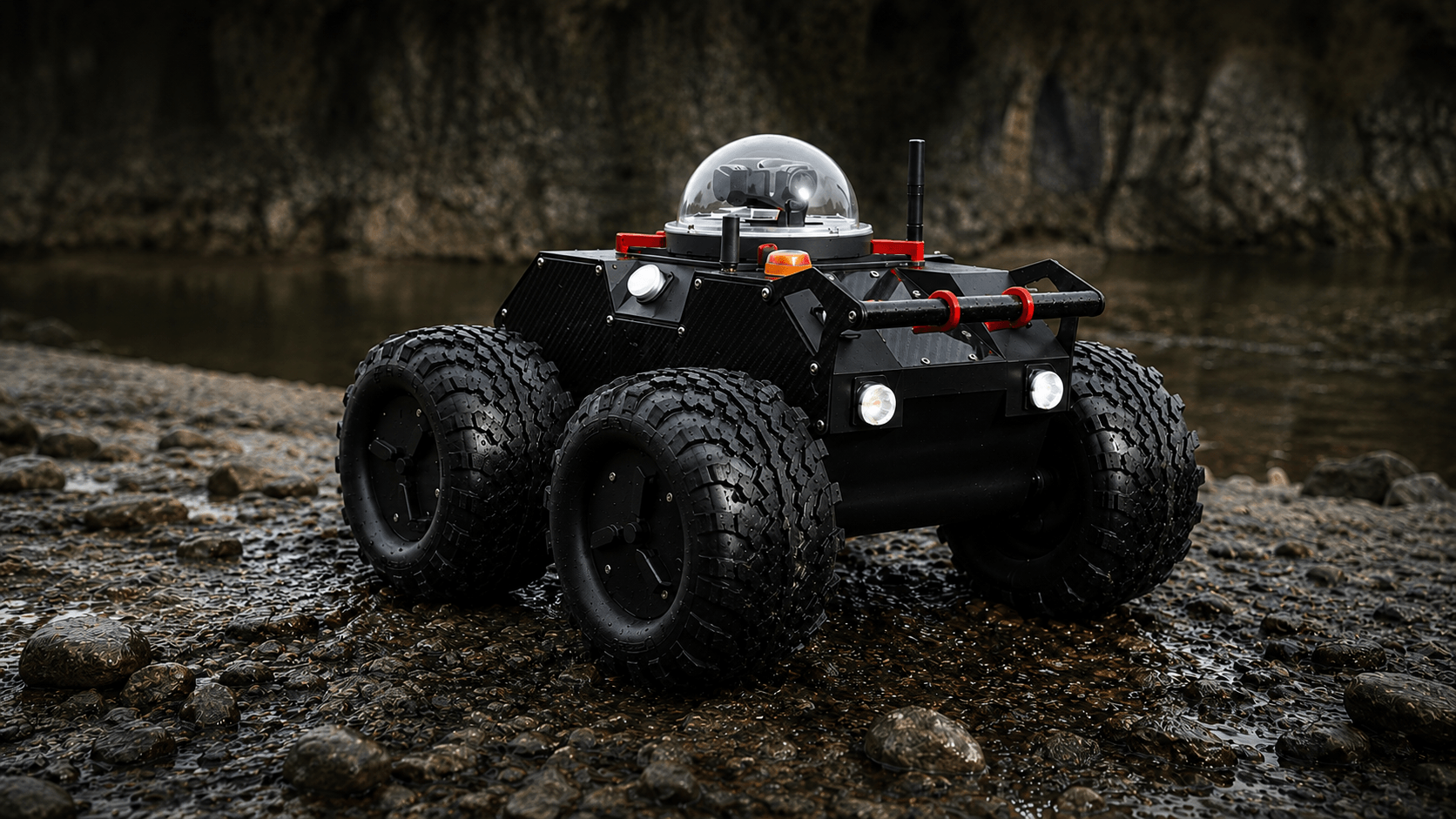

Whether navigating dark tunnel systems or surveying hazardous low-level bridges, the IBEX UGV platform thrives in any environment. Precision wheel encoders and GPS home-point integration provide surgical data accuracy where humans cannot go.

Built to explore.
 Engineered to perform.

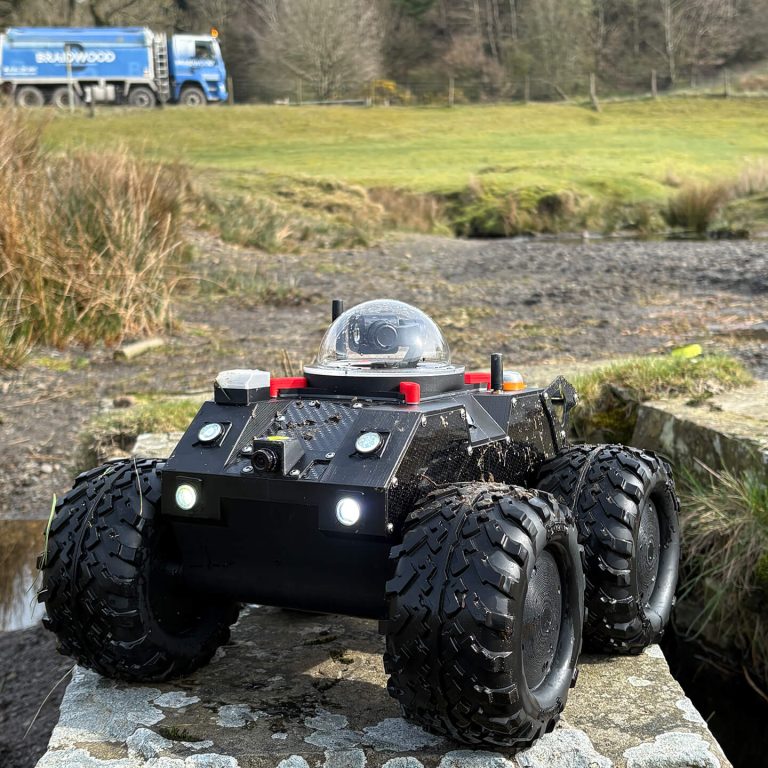

Designed for the world’s toughest elements

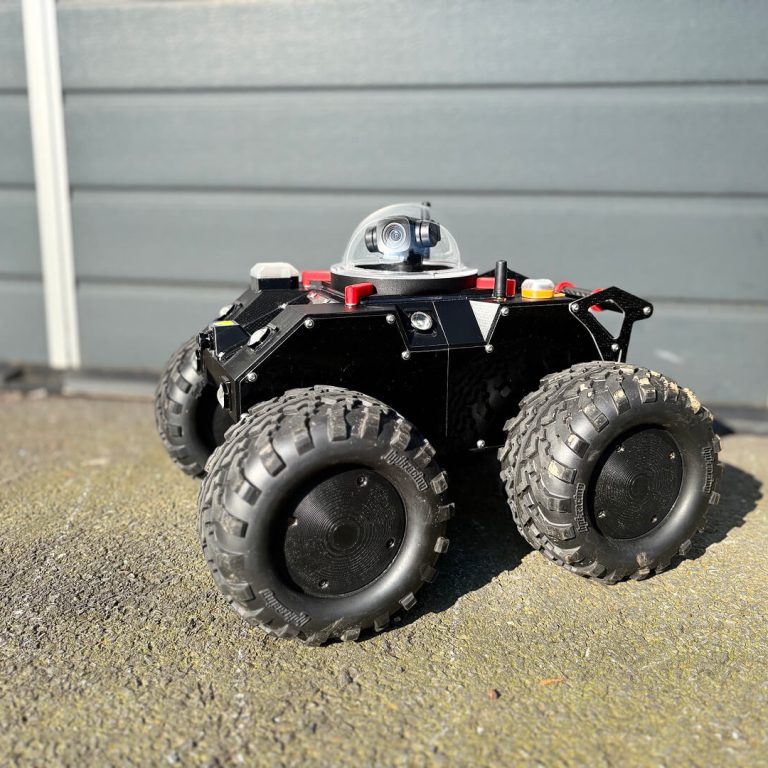

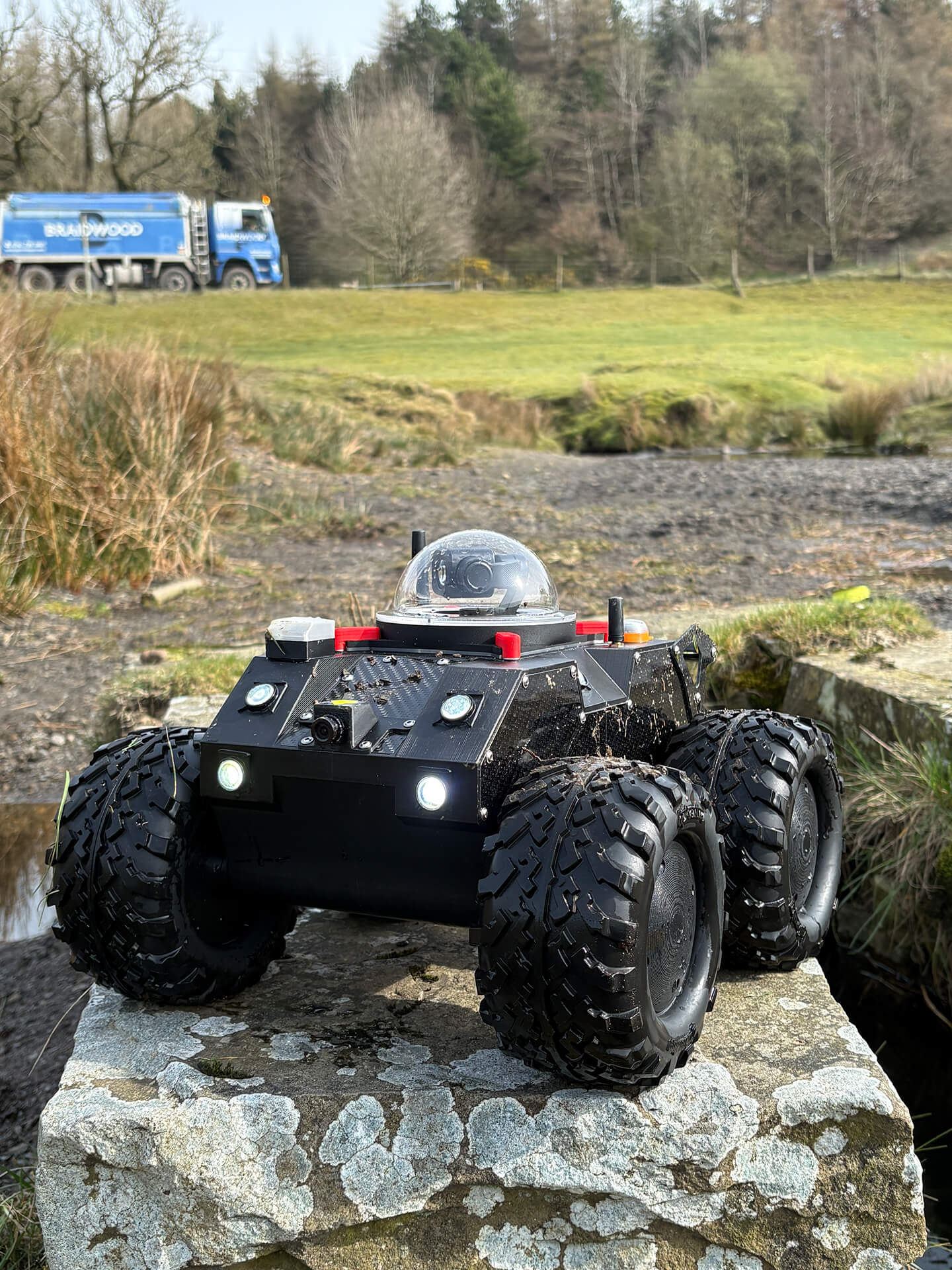

360° Observation

Dome camera for total 
situational awareness

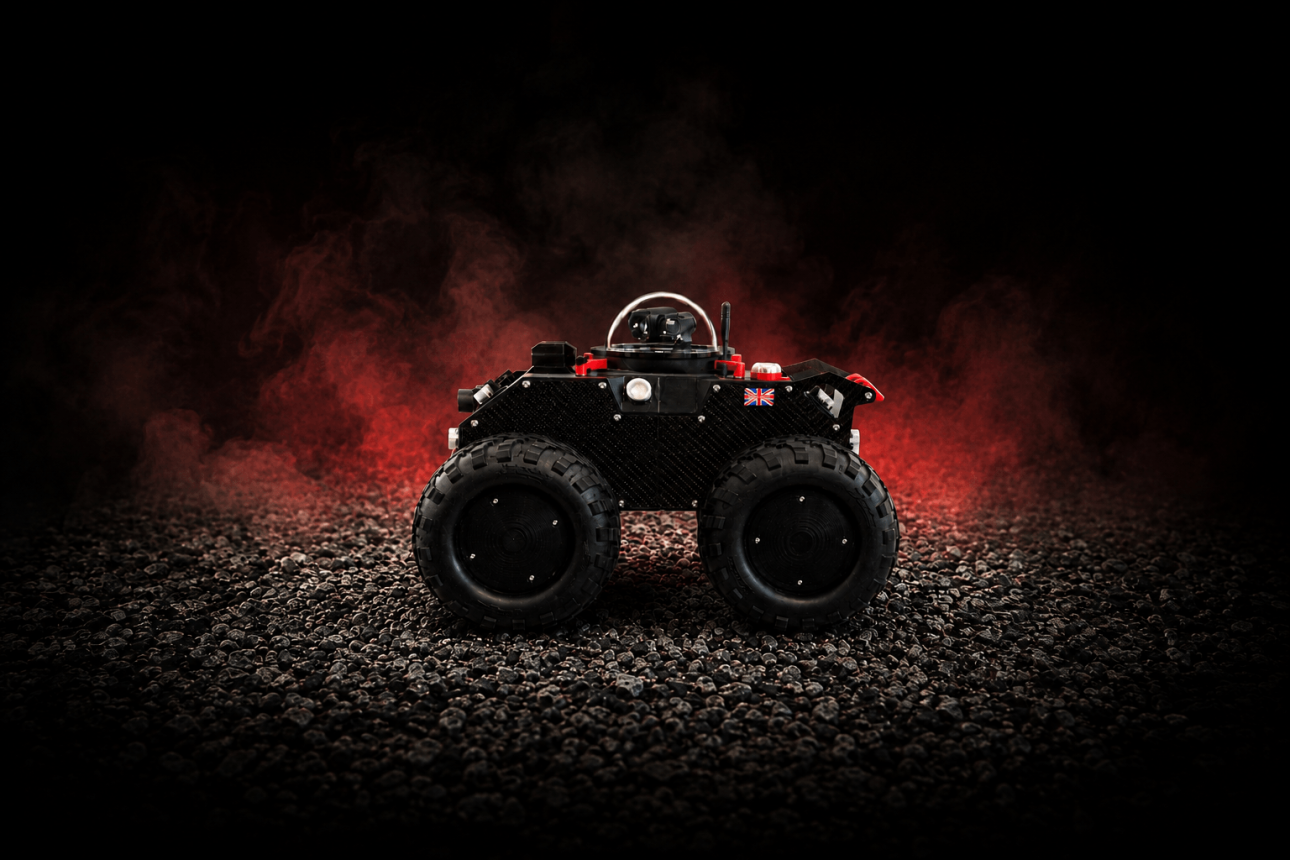

Rugged & Reliable

Built with premium materials   
for extreme environments

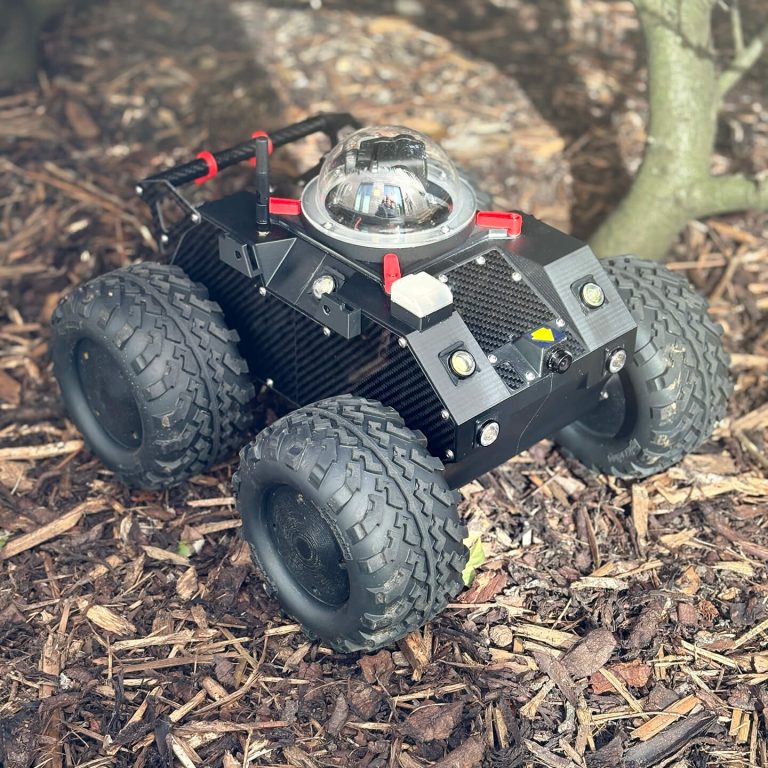

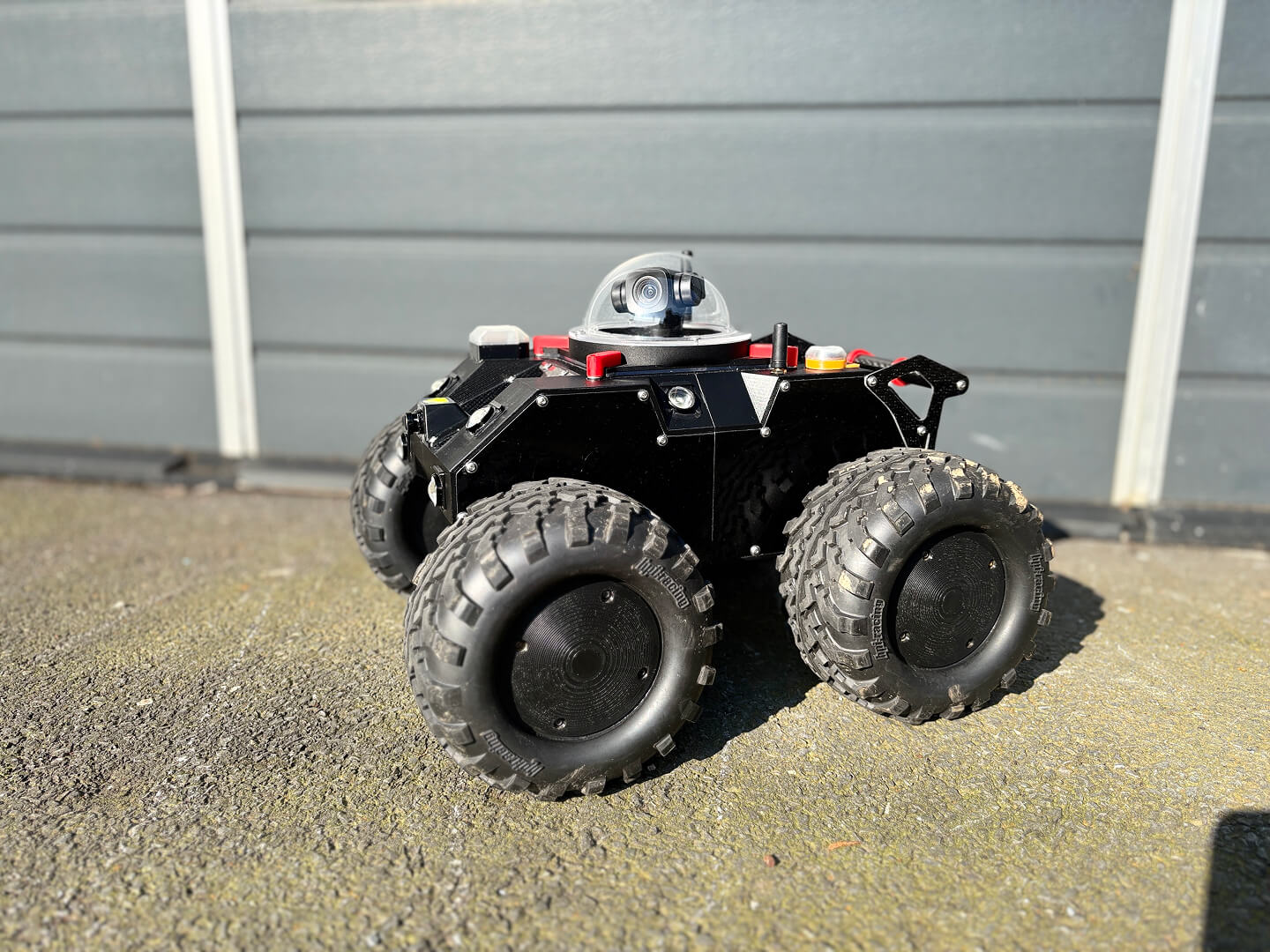

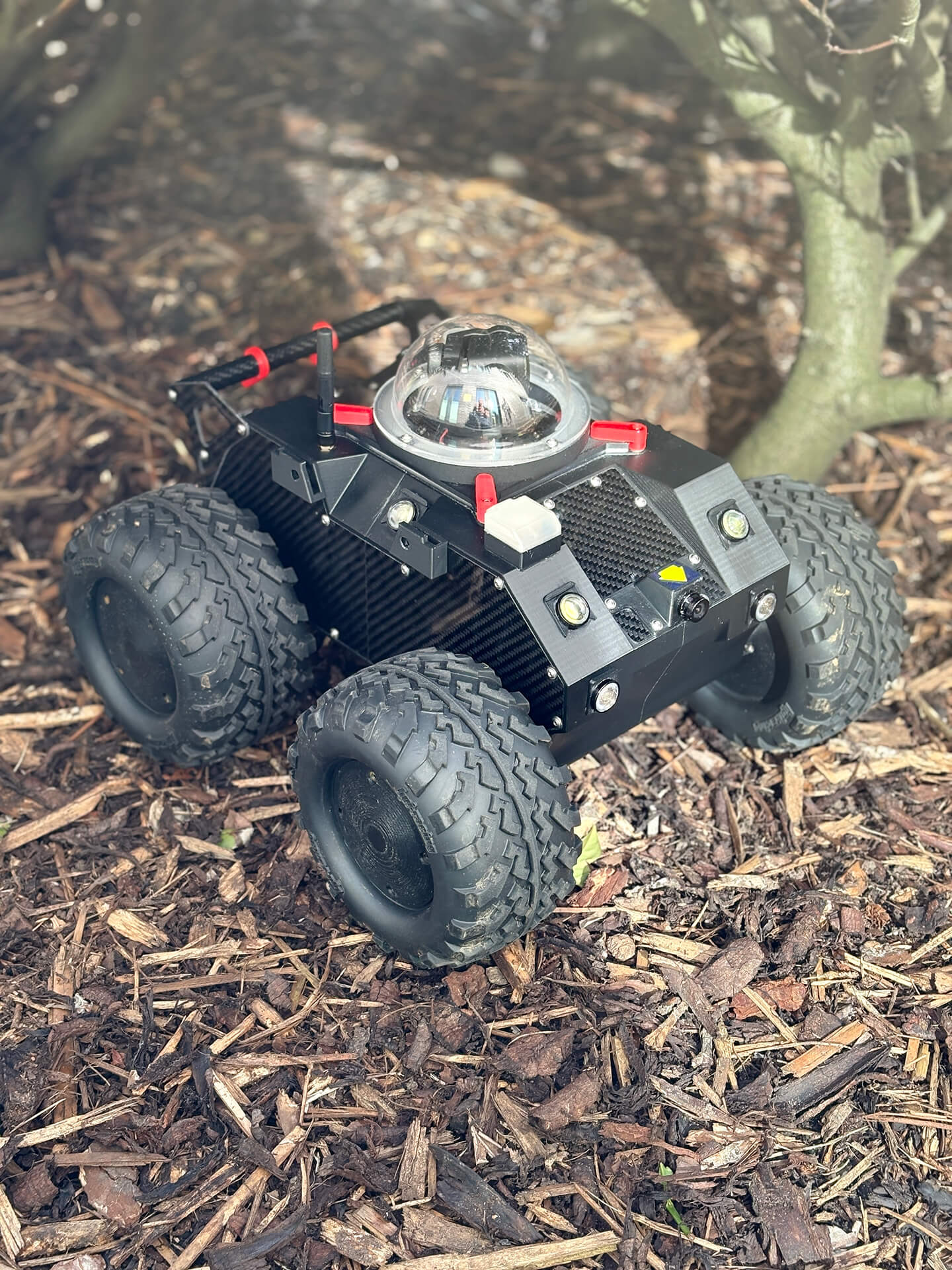

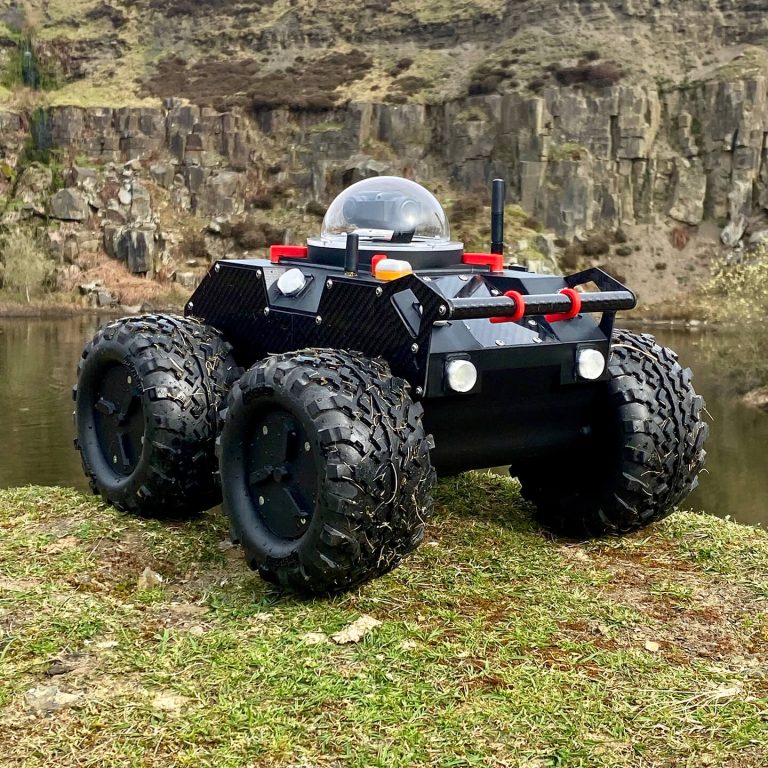

All-Terrain Mobility

All wheel drive with high-traction  
tyres for any surface

Remote Controlled

Freedom of movement,
means freedom to act.

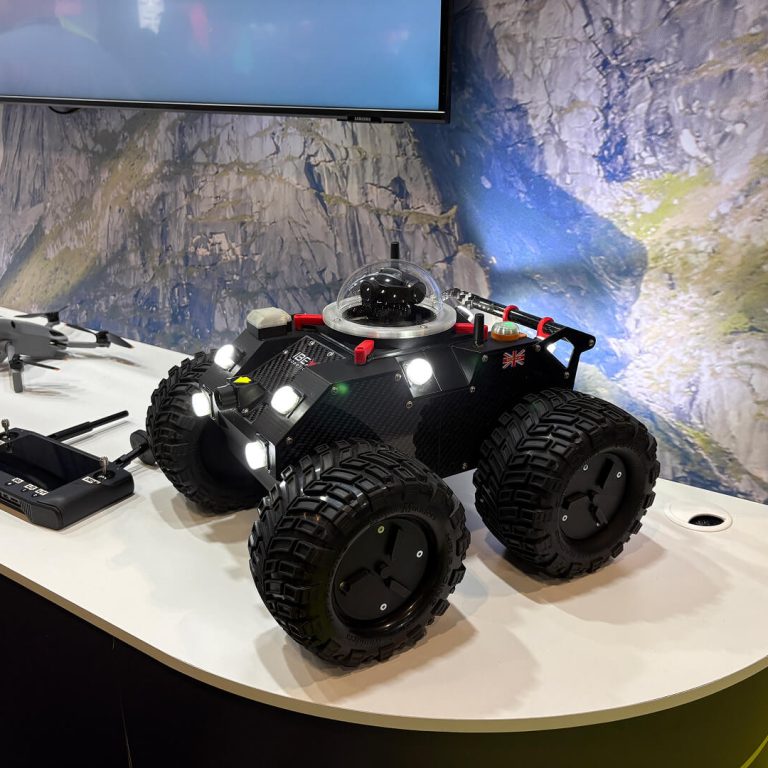

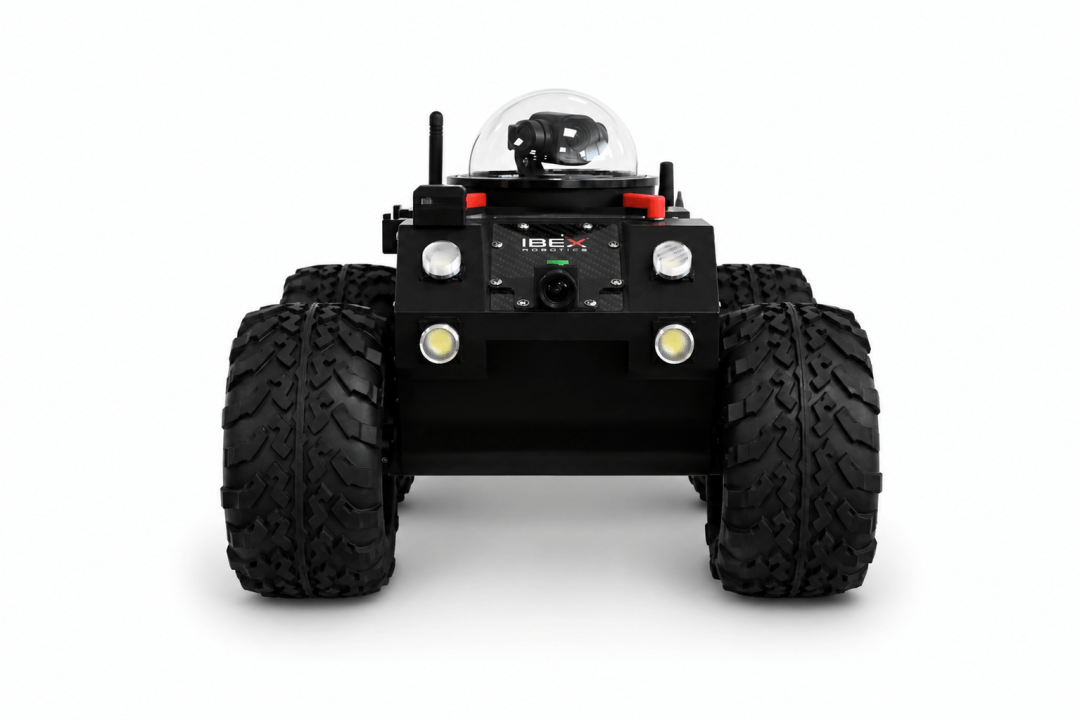

Camera & Lighting

HD Forward-Facing Pilot Camera with Picture-in-Picture (PiP) and instant camera switching.
Ultra HD Gimbal Inspection Camera with live streaming and 2.7K or 4K recording.
270° rotation with 90° upward tilt for maximum inspection coverage.
6x optical zoom.
10 high-brightness diffused LED lights, independently switchable in sections, delivering illumination equivalent to approximately 200W incandescent lighting.

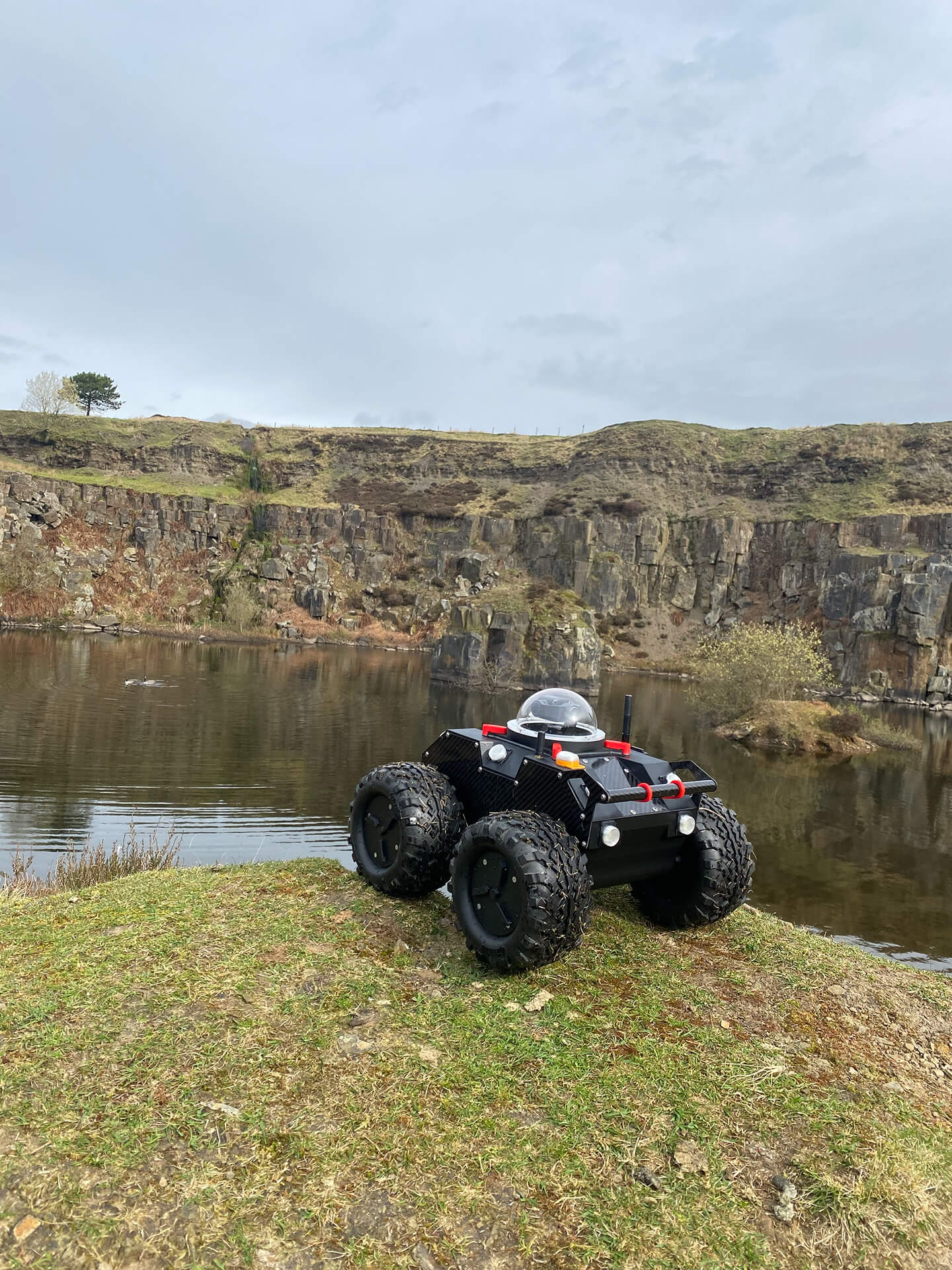

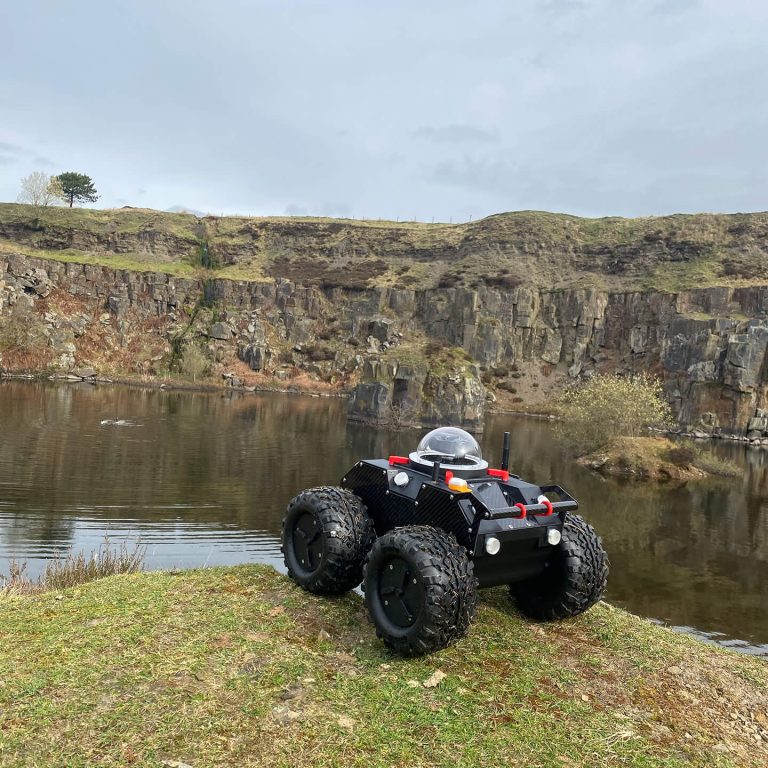

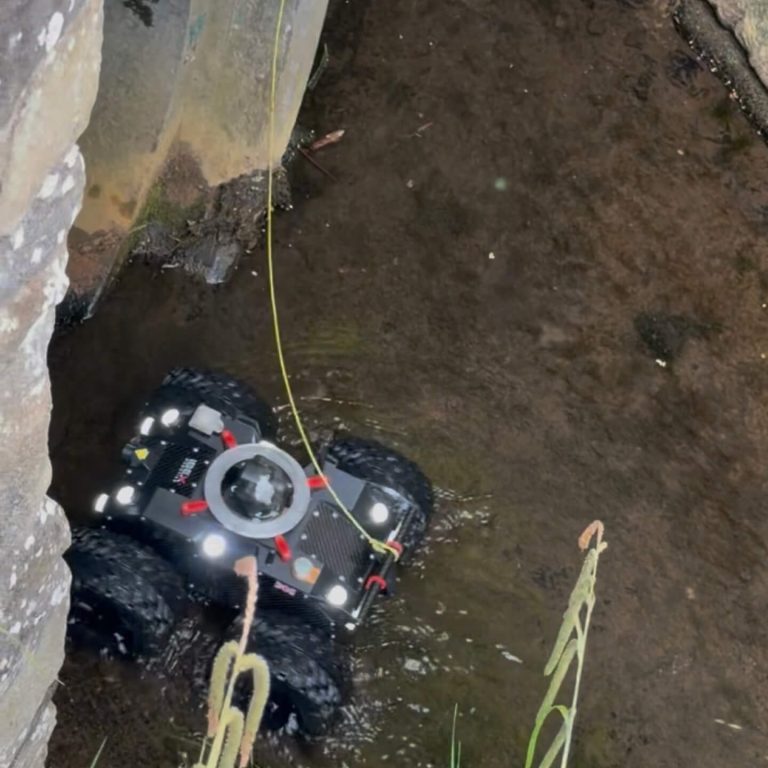

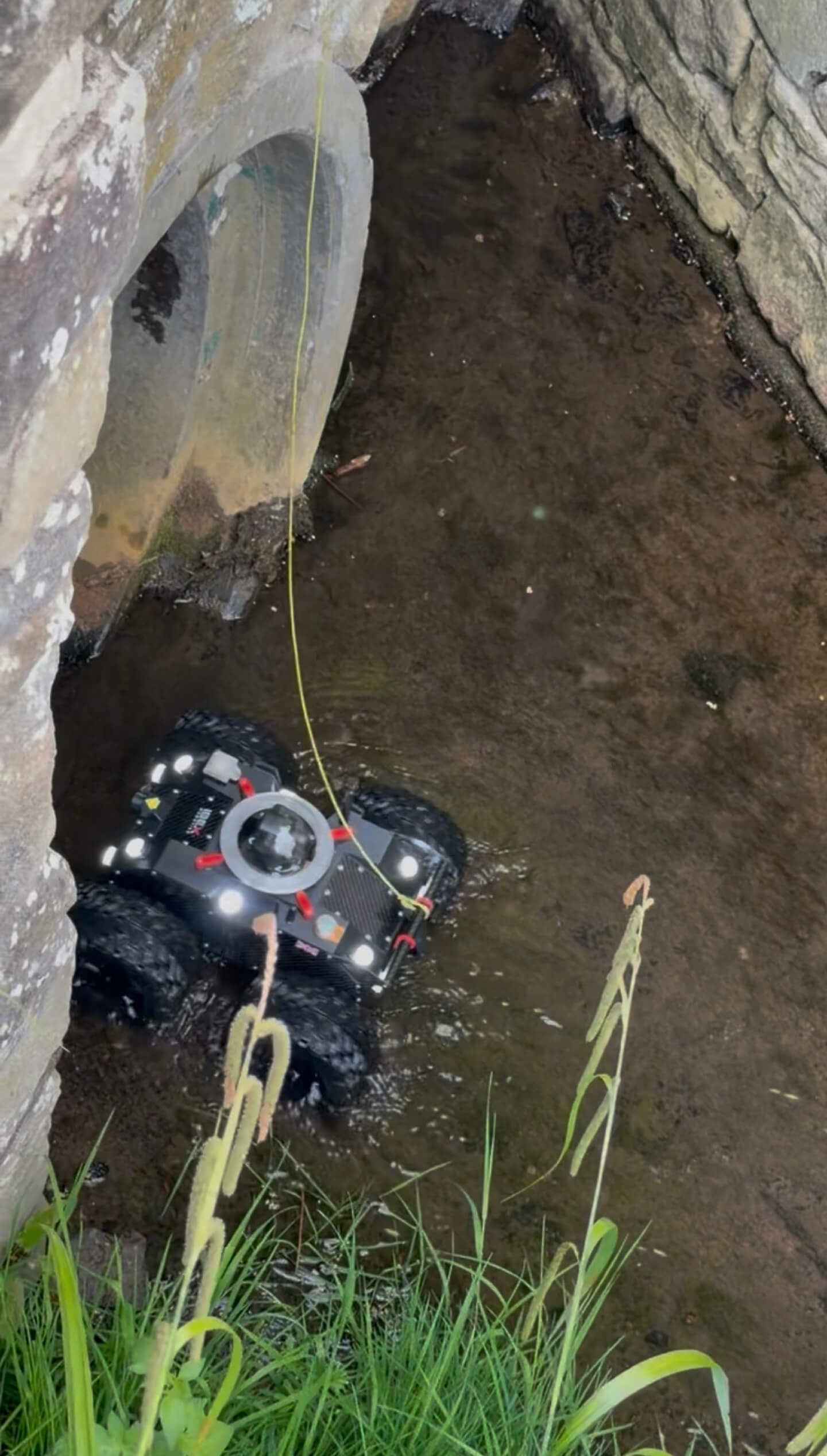

Water & Terrain Capability

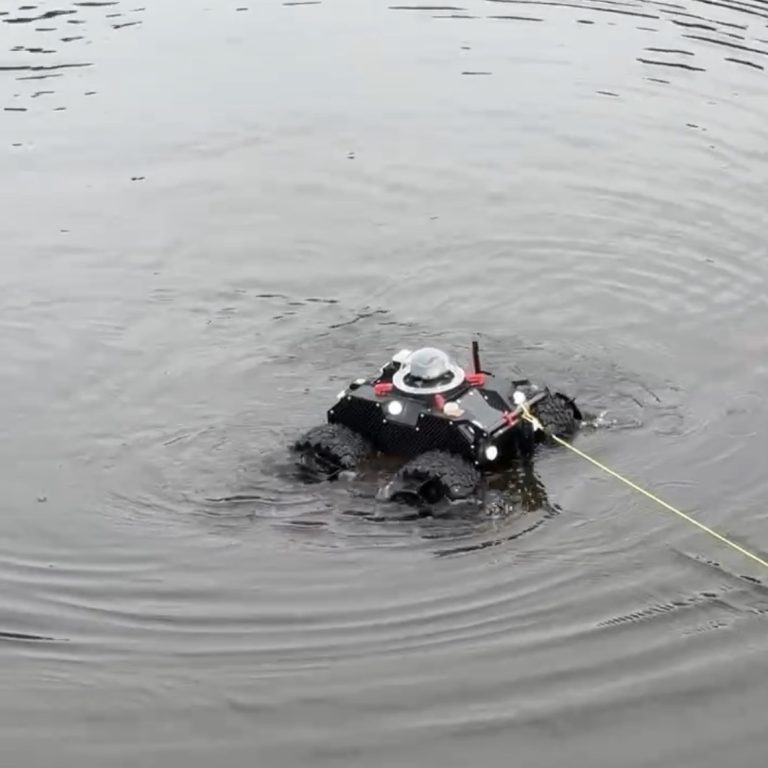

Fully buoyant and floatable.
Traverses shallow water using the standard wheel setup.
Optional Quick-Release Water Fin Kit for crossing larger still-water areas such as canals, reservoirs, and culverts.

Power System

Operates with 2 × 5000mAh 15V Li-Ion batteries.
Operating time: 2–8 hours, depending on usage.
Optional 25V battery upgrade for increased runtime, speed and payload capacity.
Internal battery placement for enhanced protection, longevity, and quick battery changes.
Waterproof external on/off switch for safe operation and storage.

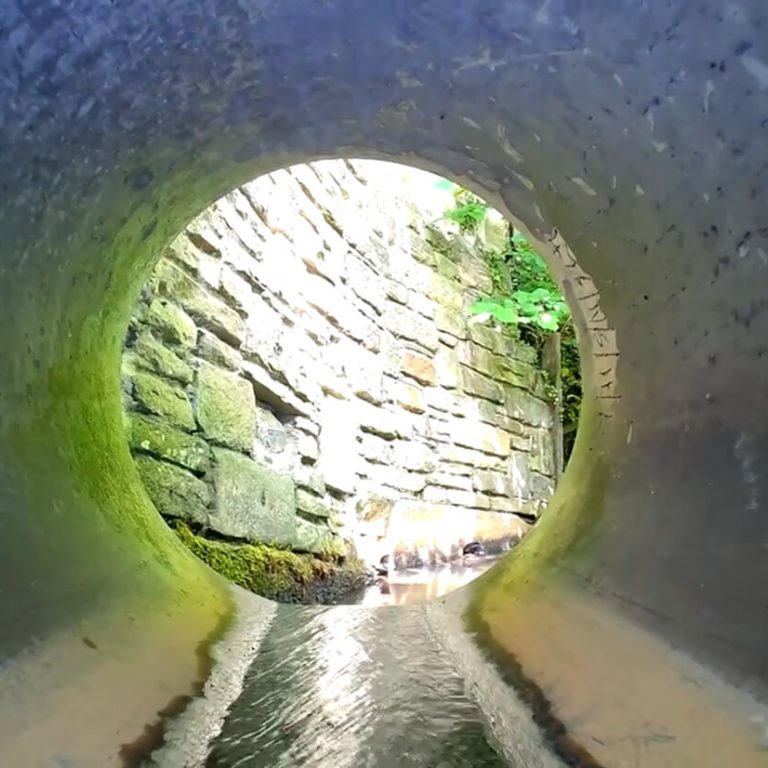

Confined Spaces

Made for tunnels, sewers, low rise bridges and anywhere unsafe for humans

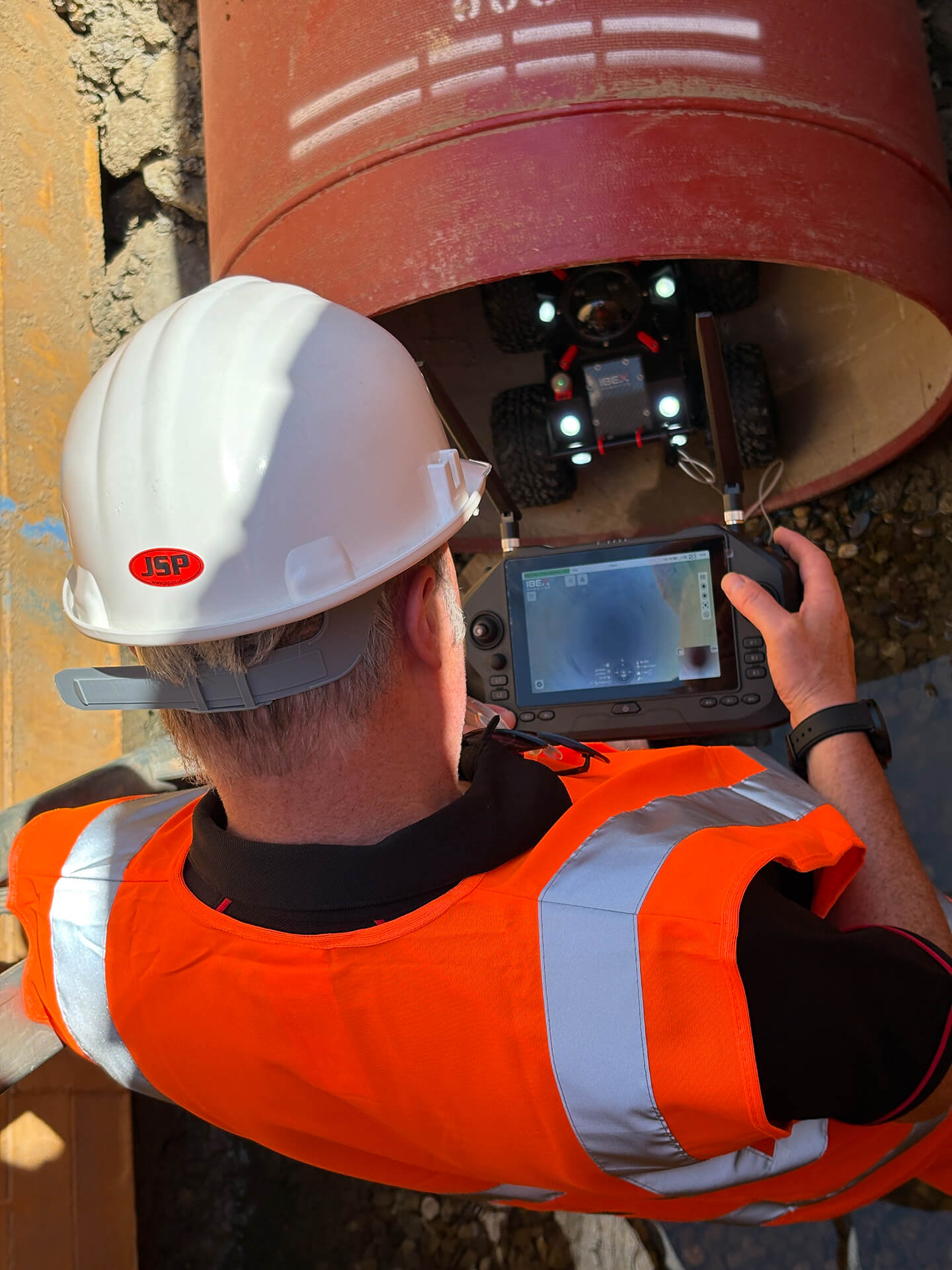

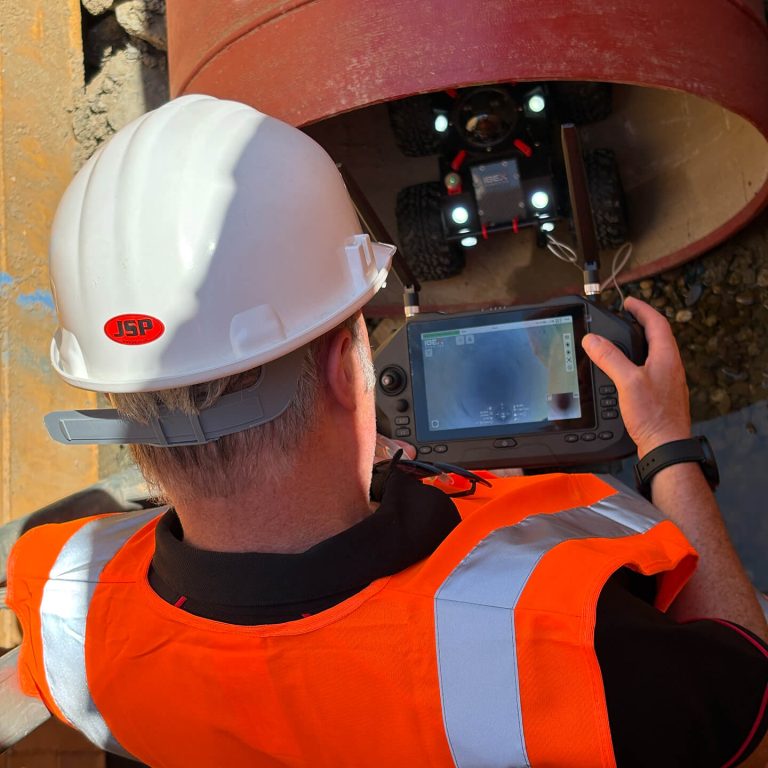

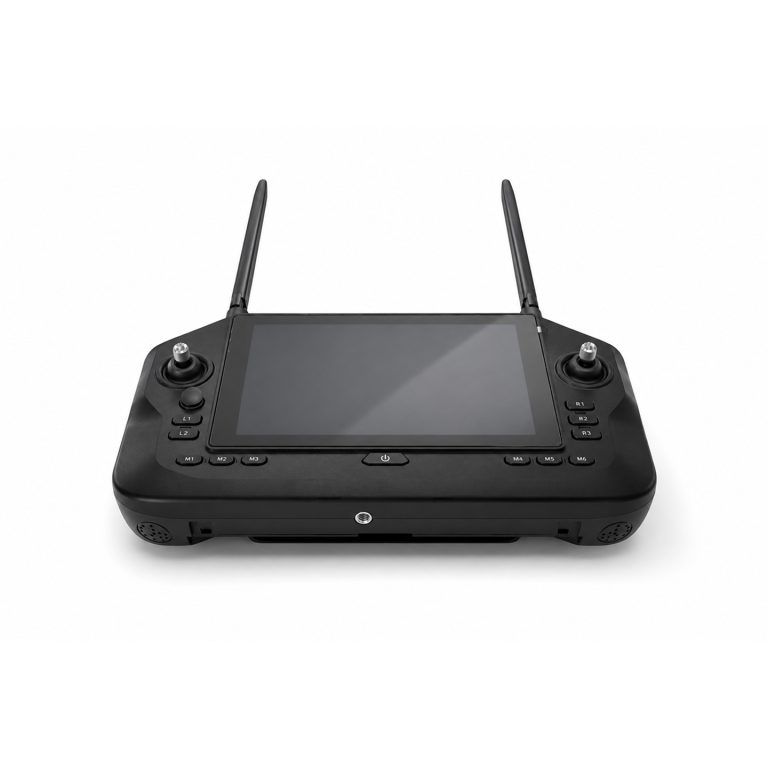

IBEX UI: Intuitive Operator Interface.

IBEX UI is well thought out, easy to use and read, with main information highlighted in direct pilot view and no unnecessary information on screen.

PIP allows ease of swapping between pilot and Inspection camera, both displaying live feed with minimal latency.

Driver operates UGV on one stick, and gimbal Cam on the other stick for simplistic, intuitive drive or inspection operations.

Backwards driving flips left/right operation for ease of driving.

Operating distances:

Outside in open environments – up to 1.5mile
In confined spaces i.e. Tunnels: 100 – 400mtr (depending on RF visibility)
Antenna upgrades to increase the distance in specific areas.

Other features:

Wheel encoders for accurate distance measurements, one-click reset.
GPS for external operation for added accuracy, One click home point reset.
Swappable between GPS or Tunnel mode (uses either GPS home point or wheel encoders).
